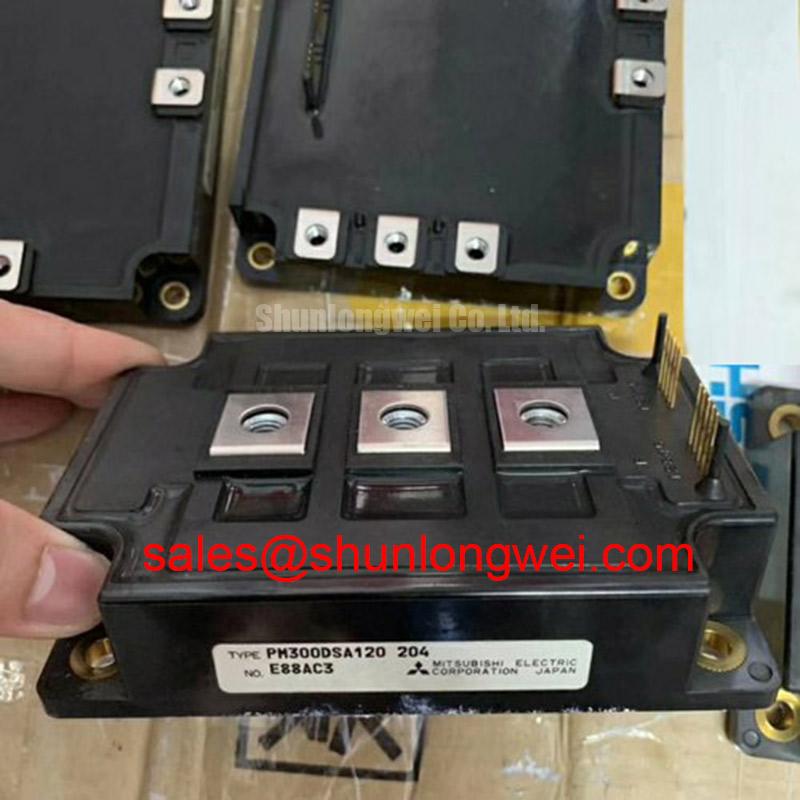

Powerex PM300DSA120 In-Stock

Powerex PM300DSA120 In-Stock

alt =” PM300DSA120 “/>

Sell Powerex PM300DSA120 New Stock

#PM300DSA120 Powerex PM300DSA120 New PM300DSA120 Power Driver Module IGBT 1 Phase Inverter 1200V 300A Module; , PM300DSA120 pictures, PM300DSA120 price, #PM300DSA120 supplier
Email: sales@shunlongwei.com

PM300DSA120 Description

PM300DSA120 is an Intelligent Power Module that is perfectly designed for power switching applications. It can operate up to a frequency of 20 kHz. It also has a collector current of 300A plus a collector emitter voltage of 1200V with a weight of only 2.01 lbs..
This device has excellent built-in control circuits in an excellent gate drive. It has it’s own protection system that safeguards itself from short circuiting, under voltage, over current and overheating.
Efficiency, reliability and cost-effectiveness – these are the three main benefits PM300DSA120 can promise!

Maximum ratings and characteristics
.Absolute maximum ratings (Tc=25°C unless without specified)
Collector-Emitter voltage Vces:1200V
Gate-Emitter voltage VGES:±20V
Collector current IC:600A
Collector current Icp:1200A
Collector power dissipation Pc:1790W
Collector-Emitter voltage VCES:2500V
Operating junction temperature Tj:+150°C
Storage temperature Tstg :-40 to +125°C
Mounting M6 screw torque 3.92~5.88 N·m
Weight Typical value 910g
