Semikron SKIIP613GB123CT 1200V MiniSKiiP® 3 IGBT Module
Introduction to High-Density Solderless Power Switching
The Semikron SKIIP613GB123CT is a high-performance half-bridge IGBT module belonging to the renowned MiniSKiiP® 3 family. It is engineered to provide superior power density by leveraging Semikron’s proprietary spring-contact technology, which eliminates the need for complex soldering and significantly enhances thermal cycling reliability. This module combines Trench IGBT3 technology with the high-efficiency CAL (Controlled Axial Lifetime) freewheeling diode, offering a robust solution for demanding industrial environments.
- Core Specifications: 1200V | 60A (Ic nom) | VCE(sat) 1.7V (typ.)

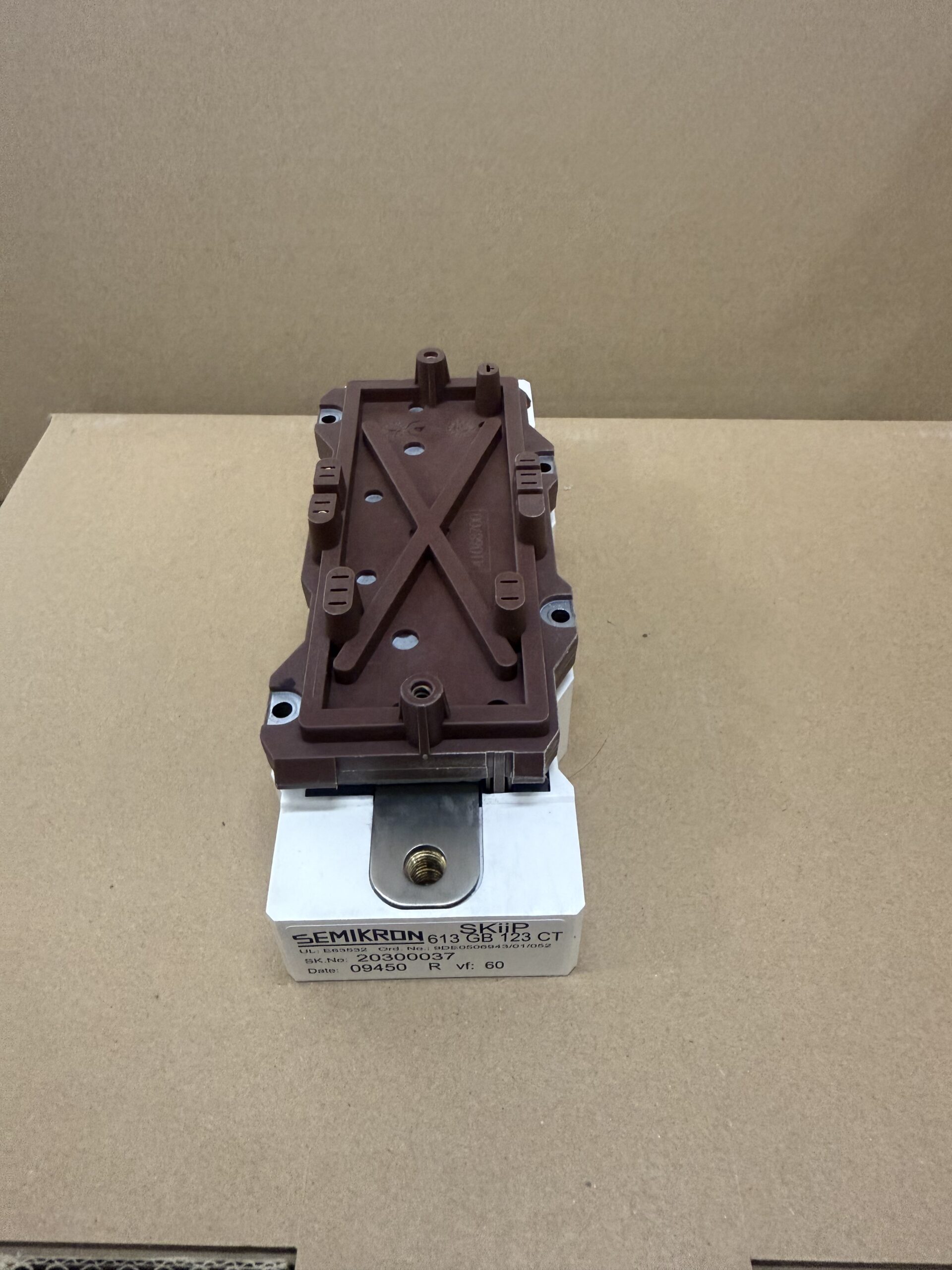

- Key Advantage 1: Solder-free assembly using pressure-contact springs reduces production time and eliminates solder-joint fatigue.
- Key Advantage 2: Integrated NTC temperature sensor allows for real-time junction temperature monitoring, protecting against catastrophic thermal runaway.
One common concern for hardware designers is: “How do spring contacts improve IGBT reliability compared to soldering?” By utilizing springs, the SKIIP613GB123CT decouples the electrical connection from the thermal stresses of the PCB, preventing the micro-cracking often found in traditional soldered modules during high-load power cycling.
Download Official SKIIP613GB123CT Datasheet (PDF)
Technical Analysis of Trench IGBT3 and CAL Diode Synergy
The SKIIP613GB123CT utilizes Trench IGBT3 technology, which is designed to minimize conduction losses through a low saturation voltage ($V_{CE(sat)}$). In a power system, conduction loss is essentially “rent paid” for moving current through the device; the 1.7V typical rating of this module ensures that more energy reaches the motor or load rather than being dissipated as heat. When combined with the Semikron CAL Diode, which features a soft-recovery characteristic, EMI (Electromagnetic Interference) is significantly reduced during high-frequency switching operations.
To understand the importance of thermal management in this module, consider an analogy: think of thermal resistance ($R_{th}$) as the width of a drainage pipe. A narrower pipe (higher resistance) limits how much water (heat) can flow away from a source. The SKIIP613GB123CT is designed with a low $R_{th(j-s)}$ to ensure that heat generated at the IGBT junction is “drained” efficiently into the heatsink, keeping the silicon within its safe operating temperature and preventing premature aging.
Optimized Application Scenarios
The engineering profile of the SKIIP613GB123CT makes it suitable for several high-availability power systems:
- Variable Frequency Drives (VFDs): Its compact MiniSKiiP® 3 footprint is ideal for integrated motor drives where space is at a premium.
- Solar Inverters: The 1200V rating provides the necessary safety margin for 400V-600V DC bus systems commonly used in commercial PV arrays.
- Uninterruptible Power Supplies (UPS): Rapid switching capabilities ensure seamless transition to battery power without significant voltage fluctuations.
- Welding Power Supplies: The robust spring-contact packaging survives the mechanical vibrations and thermal shocks inherent in industrial welding equipment.
Best Match Conclusion: Specifically optimized for inverter designs requiring high reliability and simplified, solder-free manufacturing processes in the 5kW to 15kW power range.
Key Technical Specifications
| Category | Parameter | Value (Typical) |
|---|---|---|
| Absolute Maximum Ratings | Collector-Emitter Voltage ($V_{CES}$) | 1200 V |
| Continuous Collector Current ($I_C$) | 60 A (@ Ts=70°C) | |
| Junction Temperature ($T_{j,max}$) | 175 °C | |
| Electrical Characteristics | IGBT Saturation Voltage ($V_{CE,sat}$) | 1.70 V (Tj=25°C) |
| Diode Forward Voltage ($V_F$) | 1.80 V (Tj=25°C) | |
| Thermal & Sensor Data | Thermal Resistance ($R_{th(j-s)}$) | 0.45 K/W (per IGBT) |
| NTC Resistance ($R_{25}$) | 1000 Ω (± 3%) |
Engineer FAQ
Q: Does the SKIIP613GB123CT require any specialized tools for mounting?
A: Mounting requires a standard pressure-plate and specific torque settings as defined in the datasheet to ensure the spring contacts make consistent electrical contact. No soldering equipment is used for the power or control terminals.
Q: What are the thermal management requirements for MiniSKiiP 3 modules?
A: Because these modules have a compact base, choosing a high-performance thermal interface material (TIM) is critical. The pressure-based mounting ensures optimal contact with the heatsink, but the surface must be within Semikron’s flatness specifications to prevent air gaps.
Q: How accurate is the integrated NTC sensor for over-temperature protection?
A: The NTC has a resistance tolerance of ±3% at 25°C. For precise safety thresholds, engineers should calibrate the firmware logic based on the B-value ($B_{25/100} approx 3420K$) provided in the power semiconductor specifications.
The SKIIP613GB123CT represents a specialized shift toward modular, high-reliability power design. By integrating advanced Trench IGBT3 silicon into a solder-free, compact MiniSKiiP® frame, it empowers engineers to build more resilient converters that withstand the rigorous thermal and mechanical demands of modern industrial automation.
