A discrete IGBT that helps reduce the power consumption and radiated emissions of home appliances : GT30J110SRA

A discrete IGBT that helps reduce the power consumption and radiated emissions of home appliances : GT30J110SRA

A discrete IGBT that helps reduce the power consumption and radiated emissions of home  appliances : GT30J110SRA

[1] Existing product GT60PR21
[2] @VCE=600 V, IC=60 A, VGE=+15 V, Ta=25 °C
[3] @IF=30 A, VGE=0 V, Ta=25 °C
[4] Values measured by Toshiba.
[5] Existing product GT40QR21

Features

  • 6.5th generation
  • Built-in diode by RC structure
  • Low diode forward voltage : VF=1.40 V (typ.) @IF=30 A, Ta=25 °C

Applications

Voltage resonance for home appliances

  • IH rice cooker
  • IH cooking heater
  • Microwave oven, etc.

Product Specifications

(Unless otherwise specified, @Ta=25 °C)

Internal Circuit

A discrete IGBT that helps reduce the power consumption and radiated emissions of home  appliances : GT30J110SRA

Application Circuit Example

A discrete IGBT that helps reduce the power consumption and radiated emissions of home  appliances : GT30J110SRA

The application circuits shown in this document are provided for reference purposes only.
Thorough evaluation is required, especially at the mass-production design stage.
Providing these application circuit examples does not grant any license for industrial property rights.

Characteristics Curves

A discrete IGBT that helps reduce the power consumption and radiated emissions of home  appliances : GT30J110SRA

  • The new product features a diode forward voltage[3] of typical 1.40 V at 25 °C and 30 A, about 33 % reduction from the existing product[1], helping reduce the power consumption of the equipment.

A discrete IGBT that helps reduce the power consumption and radiated emissions of home  appliances : GT30J110SRA

  • The new product has changed the chip design to reduce the capacitor short-circuit current generated during startup for voltage resonance compared with the existing product[1]. The collector current is suppressed to 150 to 200 A at TC=25 °C and VGE=15 V. Its collector-emitter saturation voltage is also equivalent to that of the existing product[1] for 60 A or lower.

  • The new product offers better trade-off characteristics with a wide gate resistance range compared to the existing product[1].

A discrete IGBT that helps reduce the power consumption and radiated emissions of home  appliances : GT30J110SRA
A discrete IGBT that helps reduce the power consumption and radiated emissions of home  appliances : GT30J110SRA
A discrete IGBT that helps reduce the power consumption and radiated emissions of home  appliances : GT30J110SRA

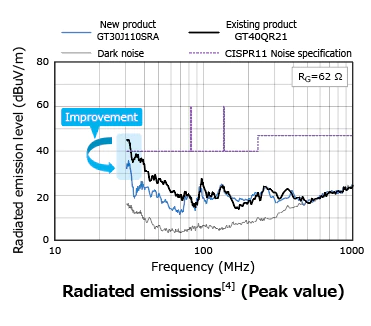

  • The new product’s radiated emissions at around 30 MHz where the radiated emissions level is the strongest has improved by about 10 dBμV/m compared to the existing similar product[5].
