DMF651ANF-FW: A Technical Review of the 640×480 Monochrome Industrial LCD
DMF651ANF-FW 640×480 Monochrome LCD Module Technical Review
Introduction to the DMF651ANF-FW FSTN Display Module
The DMF651ANF-FW is a Film-compensated Super-twisted Nematic (FSTN) monochrome LCD module engineered for clear, reliable visualization in industrial instrumentation and control systems. Its primary value proposition is the delivery of high-contrast, VGA-resolution graphics and text with low power consumption, combined with a wide operating temperature range suitable for demanding environments. This display provides a durable solution for human-machine interfaces (HMIs) where data legibility is critical.
- Core Specifications: 640×480 Pixels | 5.7-inch Diagonal | CCFL Backlight
- Key Advantages: High-contrast fluid for superior readability, integrated controller simplifies system integration.
- Design Consideration: Its specified temperature range supports deployment in environments where commercial-grade displays may fail.
Download Official Product Documentation (PDF)
Technical Analysis for System Integration
The engineering value of the DMF651ANF-FW lies in its balanced performance for industrial applications. The 640 x 480 pixel resolution on a 5.7-inch active area provides a dot pitch of 0.18 x 0.18 mm. This pixel density is well-suited for displaying detailed graphical user interfaces, numerical readouts, and system schematics without requiring significant scaling. The FSTN positive, transmissive display mode ensures that characters and graphics appear dark against a lighter background, a format recognized for its clarity in various ambient lighting conditions.
A key operational parameter is the module’s power consumption, specified at a typical value of 1.1 W. This low power draw simplifies the thermal management strategy within an enclosure. Think of power consumption as the heat footprint of a component. A lower value, like the one for the DMF651ANF-FW, means less thermal waste, which is critical for sealed, fanless systems commonly found on factory floors. This efficiency contributes to the overall reliability and longevity of the end product. For more information on ensuring display durability, consider this guide on vibration and shock resistance for industrial displays.
Optimized Application Scenarios
This module’s specifications make it a strong candidate for several specific use cases:
- Industrial Control Panels: The VGA resolution and high contrast are ideal for displaying process control data, where operators need to quickly assess system status.
- Medical Instrumentation: In devices like patient monitors or diagnostic equipment, the monochrome display’s clarity and low power usage are advantageous for presenting vital waveforms and numerical data.
- Test and Measurement Equipment: The precise pixel structure allows for sharp rendering of measurement graphs and equipment settings.
- Legacy System Retrofits: The parallel data interface and standard VGA format make it a viable component for repairing or upgrading older equipment that utilizes monochrome displays.
This module is a best-fit choice for systems requiring a robust, clear, and power-efficient display for non-color-critical HMI applications.
Key Specifications of the DMF651ANF-FW
| Parameter | Value | |
|---|---|---|

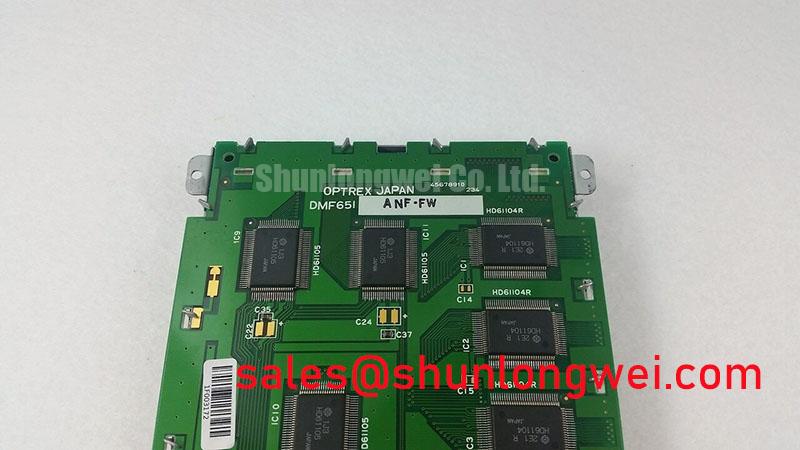

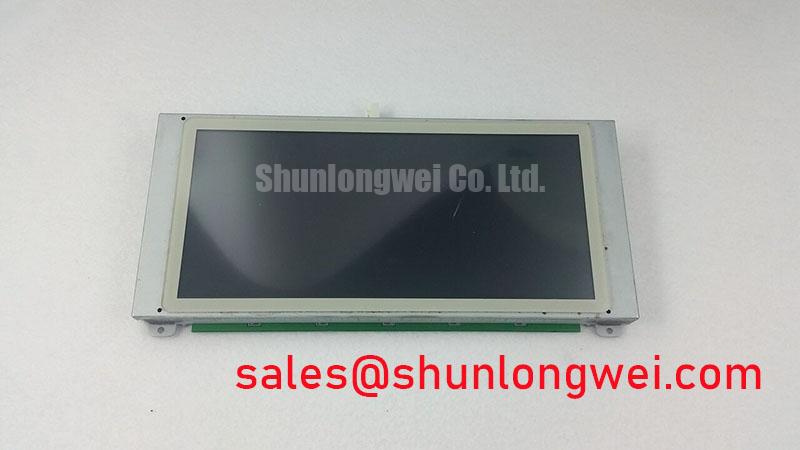

| Mechanical | Diagonal Size | 5.7 inches |
| Outline Dimensions (W x H x D) | 167.0 x 109.0 x 9.5 mm | |
| Active Area (W x H) | 115.18 x 86.38 mm | |
| Weight | 180g (Typ.) | |
| Optical | Display Format | 640 x 480 Pixels |
| Display Technology | FSTN (Film-compensated Super-twisted Nematic) | |
| Contrast Ratio | 18:1 (Typ.) | |
| Backlight | 1 CCFL with Inverter | |
| Operating Conditions | Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C | |
| Supply Voltage (Logic) | 5.0 V (Typ.) | |
Engineer’s Frequently Asked Questions
1. Is the DMF651ANF-FW suitable for outdoor applications?
Based on the datasheet, the operating temperature range is 0°C to +50°C and it does not specify a high-brightness rating for direct sunlight readability. Therefore, it is intended for indoor or sheltered industrial environments.
2. What are the interface requirements for this VGA monochrome display?

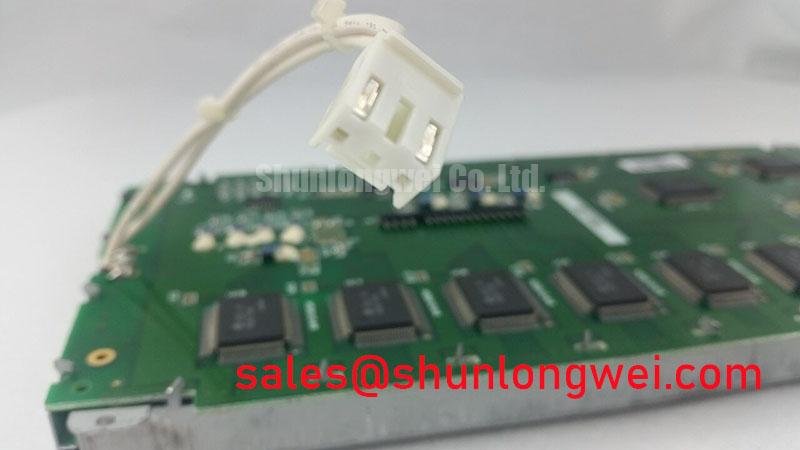

The module uses a parallel data interface for signals like data (D0-D3), frame control (FLM), line data latch (M), and dot clock (CP). A 15-pin connector is specified for this interface. Integration requires a display controller capable of generating these standard logic signals.
3. How should thermal management be handled for the CCFL backlight?
The module integrates a CCFL inverter. While overall power consumption is low, proper ventilation within the product enclosure is necessary to dissipate heat and ensure the backlight and surrounding components operate within their specified temperature limits. For context on HMI design, see these essential touch and display specifications.
4. What is the typical lifespan of the CCFL backlight?
The datasheet indicates a typical backlight lifetime of 50,000 hours, defined as the time until brightness diminishes to 50% of its initial value under standard operating conditions. Proper proactive management of the backlight can help achieve this lifespan.
Technical Summary
The DMF651ANF-FW provides a stable and efficient visualization foundation for a range of industrial equipment. Its combination of standard VGA resolution, a durable FSTN panel, and an integrated backlight system offers a straightforward path for engineers to implement clear and reliable user interfaces. The module’s performance characteristics are aligned with the requirements for long-term operational use in controlled manufacturing and instrumentation settings.
