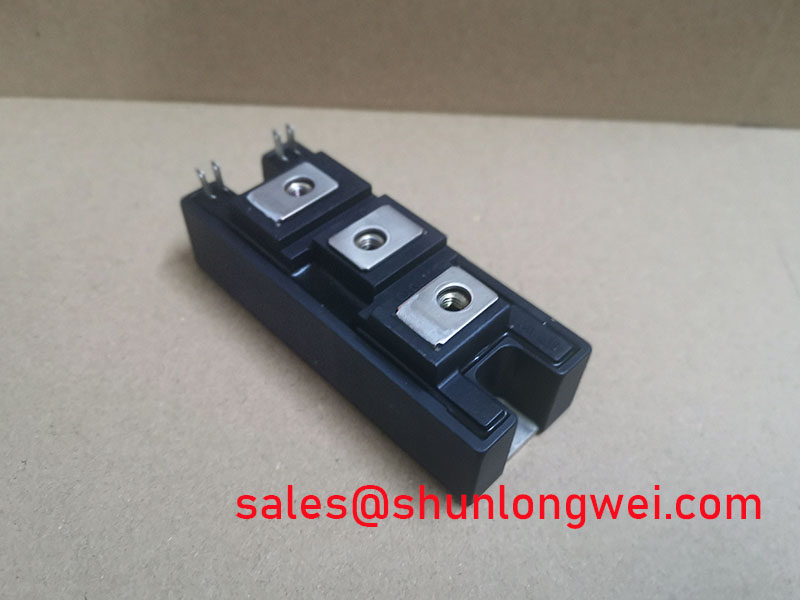

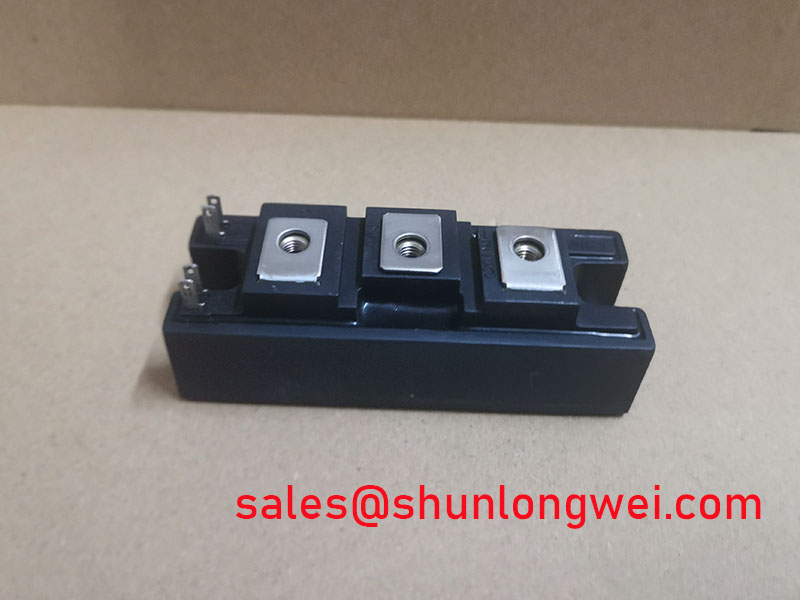

#2MBI150SC-120 Fuji 2MBI150SC-120 New 1200V. 2x150A. IGBT MODULE ( S-Series ). , 2MBI150SC-120 pictures, 2MBI150SC-120 price, #2MBI150SC-120 supplier
Email: sales@shunlongwei.com
——————————————————————-
2MBI150SC-120 Description
2MBI150SC-120 1200V / 150A 2 in one-package
Weight
2MBI150SC-120 5.34 lbs
Target_Applications
2MBI150SC-120 could be used in Inverter for Motor drive AC and DC Servo drive amplifier Uninterruptible power supply Industrial machines, such as Welding machines
Features
High speed switching voltage drive Low inductance module structure
1200V. 2x150A. IGBT MODULE ( S-Series ).
· High speed switching
· voltage drive
· Low inductance module structure
Applications
· Inverter for Motor drive
· AC and DC Servo drive amplifier
· Uninterruptible power supply
· Industrial machines, such as Welding machines
.Absolute maximum ratings (Tc=25°C unless without specified)
Collector-Emitter voltage Vces:1200V
Gate-Emitter voltage VGES:±20V
Collector current IC:200A
Collector current Icp:400A
Collector power dissipation Pc:1000W
Collector-Emitter voltage VCES:2500V
Operating junction temperature Tj:+150°C
Storage temperature Tstg :-40 to +125°C
Mounting *2 screw torque 3.5 N·m
