Sharp LQ64D342: 6.4-inch VGA Industrial TFT-LCD Display for Legacy System Reliability

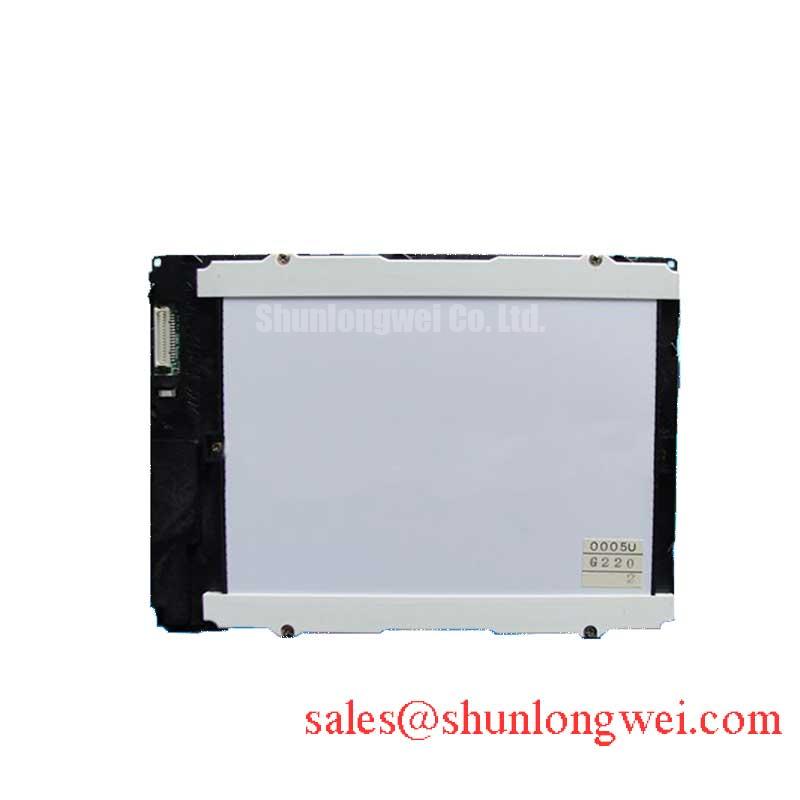

Sharp LQ64D342 6.4-inch VGA Industrial TFT-LCD Display
High-Reliability Imaging for Legacy Industrial Systems
The Sharp LQ64D342 is a robust 6.4-inch color TFT-LCD module specifically engineered to meet the rigorous demands of factory automation and legacy hardware maintenance. Utilizing an amorphous silicon (a-Si) TFT active matrix, this module delivers a stable VGA resolution (640 x 480 pixels) optimized for 4:3 aspect ratio interfaces. Its Unique Value Proposition (UVP) lies in its exceptional compatibility with 6-bit CMOS signals, providing a seamless drop-in replacement path for aging industrial controllers without requiring extensive signal processing overhauls.
- Core Specifications: 6.4″ Active Area | 640×480 VGA Resolution | 350 cd/m² Luminance
- Key Advantage: Simplifies legacy system sustainment by offering native CMOS interface support and standard industrial mounting dimensions.
- Design Reliability: Optimized for long-term consistency in environments where LCD core technology must withstand continuous 24/7 operation.
Download Official Datasheet (PDF)
M3: Technical Analysis of Signal Integrity and Luminance
The Sharp LQ64D342 distinguishes itself through its 6-bit digital CMOS interface. Unlike modern high-speed serial interfaces that require complex EMI shielding and differential pair routing, the parallel CMOS architecture of the LQ64D342 offers predictable timing characteristics. This is vital for engineers troubleshooting signal skew in older PLC environments. The module’s luminance of 350 cd/m² ensures that data remains legible under standard factory lighting, balancing power consumption with visibility.
To understand the importance of its 250:1 contrast ratio, think of the contrast as the “definition” of a silhouette against a bright sunset. A higher contrast ensures that text and graphical icons are clearly demarcated from the background, which is critical for reducing operator error during high-stress monitoring tasks. When paired with high-quality smart factory HMI specifications, the LQ64D342 provides the visual clarity necessary for precision control.
M4: Optimized Application Scenarios
The LQ64D342 is ideally suited for applications where long-term availability and mechanical stability are paramount. Its performance characteristics align best with the following sectors:
- CNC Machine Controllers: The VGA resolution matches standard G-code visualizers, while the rugged frame handles cabinet vibrations.
- Medical Diagnostic Equipment: Provides stable color reproduction for patient monitoring systems that require consistent industrial display reliability.
- Test and Measurement Instrumentation: The CMOS interface allows for direct connection to microcontrollers without expensive LVDS translation chips.
Best Match Conclusion: Engineers seeking a direct replacement for 6.4-inch VGA panels in high-vibration environments will find the LQ64D342 the most reliable mechanical and electrical fit.
M5: Key Specification Parameters
| Category | Parameter | Typical Value |
|---|---|---|
| Display Physical | Screen Size | 6.4 inch (Diagonal) |
| Resolution | 640 (RGB) x 480 (VGA) | |
| Active Area | 130.56 x 97.92 mm | |
| Optical Performance | Luminance | 350 cd/m² |
| Contrast Ratio | 250:1 | |
| Viewing Angles | 60/60/35/65 (L/R/U/D) | |
| Electrical & Backlight | Interface Type | CMOS (1 ch, 6-bit) |
| Backlight System | 1x CCFL Tube |
M6: Engineer’s FAQ
Q1: Can I drive the LQ64D342 directly with a modern 3.3V microcontroller?
A: Yes, the LQ64D342 utilizes a standard CMOS interface. However, ensure your controller supports the specific horizontal and vertical timing parameters detailed in the Sharp datasheet to avoid image shifting or flicker.
Q2: What are the thermal considerations for mounting this in a sealed enclosure?
A: The module has an operating temperature range of -10 to 65 °C. Because it uses a CCFL backlight, heat dissipation from the inverter must be managed. Proper ventilation or a heat-conductive mounting bracket is recommended to maintain optimal operator well-being and display longevity.
Q3: Is the CCFL backlight replaceable in this module?
A: The CCFL unit is integrated into the module frame. While technically serviceable by a specialized technician, it is generally treated as a non-user-replaceable part to protect the polarization layers from dust contamination.
Enduring Value for Industrial Infrastructure
The Sharp LQ64D342 remains a cornerstone component for professionals managing specialized industrial infrastructure. By prioritizing interface stability and mechanical durability over transient consumer trends, this module ensures that critical monitoring systems remain operational for their intended service life. Its straightforward CMOS architecture provides the reliability required to maintain high-uptime production lines and medical facilities.
