LG LM190E05-SL01: A Technical Review for Industrial Display Integration

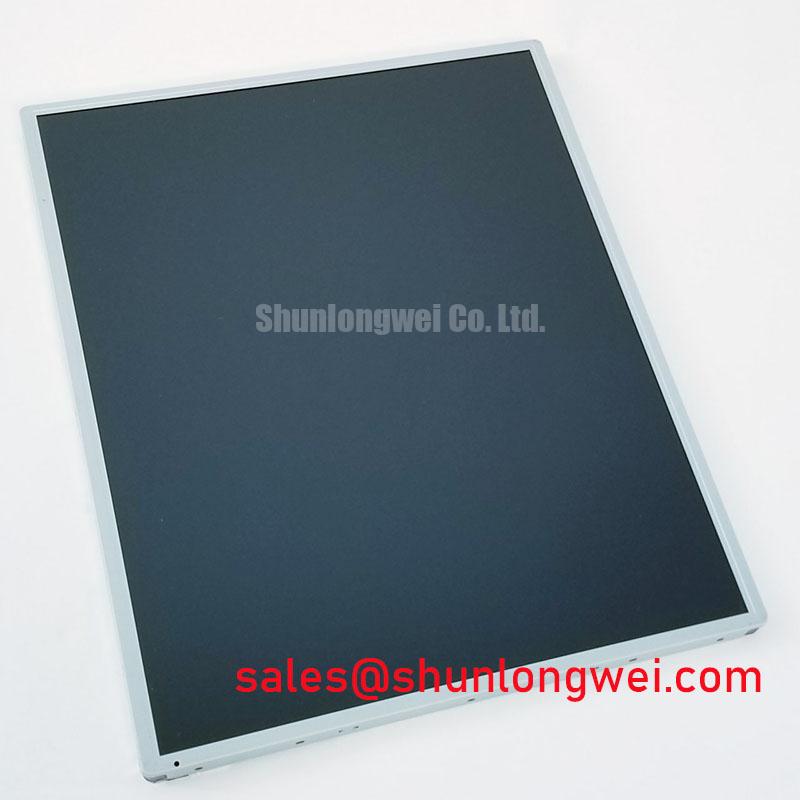

LG LM190E05-SL01 19.0-inch SXGA TFT-LCD Module
Introduction and Core Highlights
The LG LM190E05-SL01 is a Color Active Matrix TFT-LCD module engineered for applications requiring stable, high-quality visuals. This display’s unique value lies in its combination of SXGA resolution and exceptionally wide viewing angles, ensuring image clarity and color consistency regardless of the observer’s position. It is built using amorphous silicon (a-Si) thin-film transistors for reliable performance in industrial settings.
- Core Specifications: 19.0-inch Diagonal | 1280×1024 SXGA | 700:1 Contrast Ratio (Typ.)
- Key Advantages: Delivers consistent off-axis image fidelity; standard LVDS interface simplifies system integration.
For detailed specifications and integration guidelines, procurement managers and design engineers can download the official datasheet (PDF).
Technical Analysis for System Integration
The engineering value of the LM190E05-SL01 is evident in its optical performance characteristics. The specified typical viewing angle of 80° in all directions (horizontal and vertical) is crucial for applications where multiple users view the screen from different positions, such as in control rooms or medical facilities. This eliminates the color shifting and contrast degradation that can occur with displays that have more limited viewing cones. This wide-angle performance is foundational to creating ergonomic and effective human-machine interfaces (HMIs).
The contrast ratio of 700:1 provides a clear distinction between black and white levels. Think of contrast ratio as the display’s ability to render depth and detail; a higher value is like the difference between a faded print and a sharp, high-quality photograph. This capability is critical for accurately displaying grayscale data, such as that found in industrial process monitoring or non-diagnostic medical imaging. Furthermore, the standard 2-channel, 8-bit LVDS interface is a well-established standard, allowing for straightforward integration with a wide range of single-board computers and industrial controllers. For more on managing display thermals, see our guide on thermal management for display reliability.
Optimized Application Scenarios
The specifications of the LM190E05-SL01 make it a strong candidate for several specific industrial use cases:
- Industrial Control Panels: Its SXGA resolution provides ample screen real estate for complex SCADA and HMI applications, while the wide viewing angles ensure readability for operators on the factory floor.
- Information Kiosks & ATMs: The robust design and consistent image quality are well-suited for public-facing interactive systems where users may approach the screen from various angles.
- Test and Measurement Equipment: The high contrast and 8-bit color depth (16.7M colors) enable precise and clear rendering of waveforms, charts, and detailed graphical data.
- Medical Carts (Non-Diagnostic): An anti-glare surface treatment and stable viewing characteristics make it suitable for patient monitoring and equipment interfaces where data must be clearly visible under varied lighting.
This module is an optimal match for systems requiring a durable, standard-interface 19-inch display with superior off-axis visual performance.
Key Specifications of the LM190E05-SL01
| Display Characteristics | |
|---|---|
| Screen Diagonal | 19.0 inches |
| Resolution | 1280(RGB)×1024 (SXGA) |
| Pixel Pitch | 0.294 x 0.294 mm |
| Display Mode | Normally Black, Transmissive |
| Optical Characteristics | |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) |
| Viewing Angle (CR≥10) | 80/80/80/80 (Typ.) |
| Response Time | 8 ms (Typ., Tr+Td) |
| Electrical & Mechanical | |
| Signal Interface | LVDS (2 ch, 8-bit), 30-pin connector |
| Logic Voltage (VCC) | 12.0V (Typ.) |
| Backlight System | 4 pcs CCFL (external inverter required) |
| Operating Temperature | 0 ~ 50 °C |
Engineer’s FAQ
- How does the CCFL backlight impact design choices?
- The LM190E05-SL01 uses a Cold Cathode Fluorescent Lamp (CCFL) backlight, which requires a separate, external DC-AC inverter. Engineers must source and integrate a compatible inverter that meets the lamp’s specified voltage and current requirements to ensure proper brightness and lifespan. This differs from modern LED-backlit panels that often have integrated driver circuitry.
- What are the panel’s mounting and physical specifications?
- The module has an outer dimension of 396(H) × 324(V) × 20.5(D) mm (Max). The datasheet provides detailed mechanical drawings showing the locations of mounting holes on the side flanges, which should be used for secure integration into a chassis or bezel. Adhering to these specifications is vital for ensuring mechanical stability and preventing stress on the panel. For more insights, refer to our article on vibration and shock resistance.
- Is this model suitable as a replacement for older 19-inch SXGA displays?
- Yes, its standard 5:4 aspect ratio, SXGA resolution, and common LVDS interface make the LM190E05-SL01 a strong candidate for retrofitting or replacing older displays in existing systems. However, it is essential to verify the mechanical mounting points, overall dimensions, and the electrical characteristics of the existing inverter to ensure full compatibility.
Final Statement for Design Consideration
The LM190E05-SL01 provides a technically sound foundation for industrial HMIs and information displays. Its focus on delivering consistent, wide-angle viewing and a standard interface addresses core engineering requirements for visual performance and integration efficiency. This module enables the development of systems where clear communication of visual data to the operator is paramount.
