Mitsubishi AA121XK04: A Robust 12.1-Inch Display for Industrial Applications

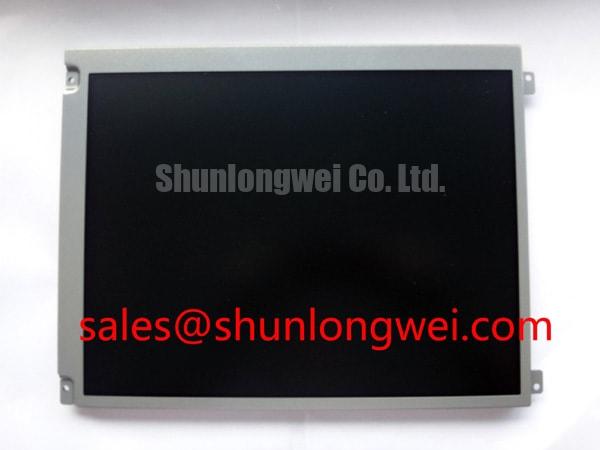

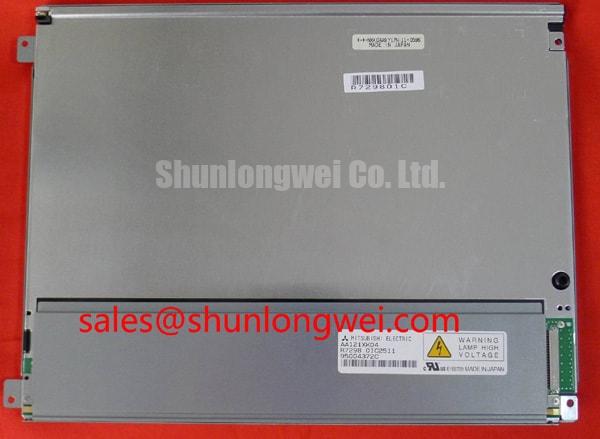

## Mitsubishi AA121XK04 12.1″ XGA Industrial TFT-LCD Module
The Mitsubishi AA121XK04 is a 12.1-inch amorphous silicon (a-Si) TFT-LCD module engineered for long-term performance in industrial applications. This display delivers consistent XGA resolution imagery, supported by a robust mechanical design and a replaceable backlight system, addressing the operational demands of professional environments. It provides a durable and reliable human-machine interface (HMI) solution.
* **Core Specifications**: 1024×768 XGA | 420 cd/m² Brightness | LVDS Interface
* **Key Advantages**: Long-life WLED backlight (60,000-hour minimum), wide operating temperature range (-20 to 70°C).
* **User Intent Answered**: For systems requiring a standard 4:3 aspect ratio display with industrial-grade durability, the AA121XK04 offers a proven solution with a standard LVDS interface for straightforward integration.
Download the Official AA121XK04 Datasheet (PDF)
### Technical Analysis for System Integration
The AA121XK04 is constructed for reliability and serviceability, two critical factors in industrial equipment design. A standout feature documented in its specification is the replaceable white LED backlight unit. This component has a minimum specified lifetime of 60,000 hours, which allows for proactive maintenance and extends the total operational life of the host system, a key consideration explored in guides on the proactive management of industrial LCD backlight lifespan. This design choice directly supports a lower total cost of ownership.
The module’s thermal and mechanical resilience is also a core engineering benefit. It is specified to operate reliably in ambient temperatures from -20°C to 70°C and can withstand operational vibration of 0.5 G (4.9 m/s²). This resilience can be thought of as a vehicle’s suspension system; just as a robust suspension handles rough terrain, the display’s mechanical design absorbs the stresses of typical factory floor or field environments, ensuring consistent uptime. This makes it suitable for integration into systems that must conform to various vibration and shock resistance standards for industrial displays.
### Optimized Application Scenarios
The specifications of the AA121XK04 make it a strong candidate for a range of controlled-environment industrial applications.
* **Industrial Automation HMI**: The standard XGA resolution and LVDS interface allow for direct integration with many single-board computers and industrial controllers.
* **Test and Measurement Equipment**: Its 550:1 contrast ratio and antiglare surface ensure that critical data and waveforms are presented with clarity to operators.
* **Process Control Systems**: The wide operating temperature range ensures stable performance in control rooms that may not have precise climate control.
* **Medical Diagnostic Displays (Non-diagnostic)**: For auxiliary displays on medical equipment, the consistent color performance and reliable backlight are well-suited for user interfaces and status monitoring.
This display is an optimal match for legacy system upgrades or new designs requiring a proven, long-lifecycle 12.1-inch XGA panel.
### Key Specifications of the AA121XK04
| Display & Optical Characteristics | |
|---|---|
| Panel Type | a-Si TFT-LCD, TN, Normally White |
| Resolution | 1024(RGB)×768 (XGA) |
| Active Area | 245.76 × 184.32 mm |
| Luminance | 420 cd/m² (Typ.) |
| Contrast Ratio | 550:1 (Typ.) |
| Viewing Angle (Typ.) | 80/80/80/60 (L/R/U/D) |
| Electrical & Interface | |
| Interface | LVDS (1 channel, 6/8-bit), 20-pin connector |
| Logic Voltage (VCC) | 3.3V (Typ.) |
| Backlight System | WLED, Edge Light Type, Replaceable |
| Mechanical & Environmental | |
| Outline Dimensions | 280 × 210 × 12.0 mm |
| Weight | 750g (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -20 ~ 80 °C |
### Engineer FAQ
**1. What is the typical power consumption of the AA121XK04?**
The datasheet specifies the logic power consumption at 3.3V is typically 1.06W (320mA). The backlight power consumption is separate and not explicitly stated as a combined figure, but it draws a typical current of 150mA at 24.0V. Total consumption will depend on the final brightness setting.
**2. How should the display be mounted for effective thermal management?**
While the module has a wide operating temperature range, ensuring adequate airflow around the unit is essential for long-term reliability. The datasheet does not specify mandatory mounting orientations for thermal reasons, but designers should follow best practices for thermal management for industrial display reliability to prevent the unit from exceeding its 70°C maximum operating temperature.
**3. Does this module include a built-in backlight driver?**
No, the datasheet indicates the AA121XK04 module does not have an integrated backlight driver. An external driver is required to supply the specified voltage and current to the WLED backlight unit.
**4. What are the LVDS interface requirements?**
The module uses a standard single-channel LVDS interface supporting either 6-bit or 8-bit color depth. The interface connection is a 20-pin FI-SE20P-HFE connector or equivalent. The LVDS timing must be compatible with a receiver IC like the THine THC63LVDF84B or similar.
### Enabling Reliable Industrial Interfaces
The Mitsubishi AA121XK04 provides a well-documented and stable platform for developing industrial HMIs. Its focus on a long-life, replaceable backlight and a robust operational temperature range equips engineering and procurement teams with a display solution built for sustained performance in the field. This addresses fundamental requirements for equipment longevity and serviceability.
